SPECIFICATION
Loa, Lwl 8.00 m
Draft 0.28 m
Beam 4.25 m
Draft dagger board rudder 0.60 m
Weight empty 550.00 kg
Weight max. CWL 922.00 kg
Loa, Lwl 8.00 m
Draft 0.28 m
Beam 4.25 m
Draft dagger board rudder 0.60 m
Weight empty 550.00 kg
Weight max. CWL 922.00 kg

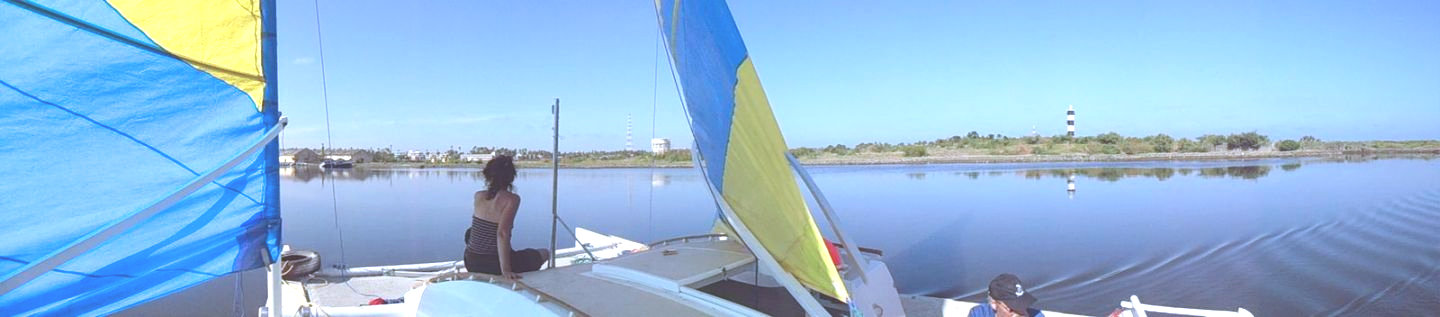

Parallel rig version built in India

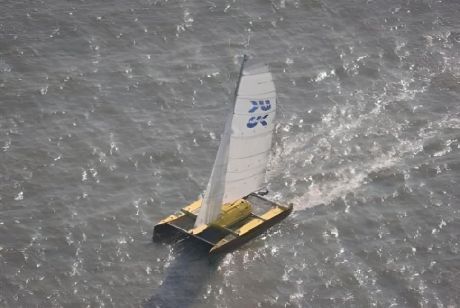

Sloop version
Sail area sloop rig 28.60 m2
Sail area parallel rig 34.60 m2
L : B ratio hulls 1 : 20
L : B ratio boat 52 %
Max. righting moment (RM) 1900 kgm
Max.speed wind speed 20.72 kn21.63 kn computer prediction)
Auxiliary outboard engine 5 HP
Construction time 800 hours
Sail area parallel rig 34.60 m2
L : B ratio hulls 1 : 20
L : B ratio boat 52 %
Max. righting moment (RM) 1900 kgm
Max.speed wind speed 20.72 kn21.63 kn computer prediction)
Auxiliary outboard engine 5 HP
Construction time 800 hours
The DUO 800 can be build with a sloop rig or a parallel rig.
Both are very fast coastal cruiser catamarans for the whole family. The parallel rig version will be faster because the sail area is bigger and the center of effort is lower.

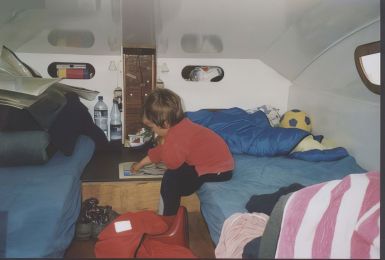

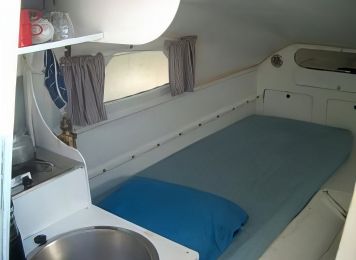

It is the only eight-meter cat with a central nacelle on the market today. The nacelle sleeps four for a weekend outing or three for a holiday trip.
With a purpose-built trailer the boat can be set up in about a one hour

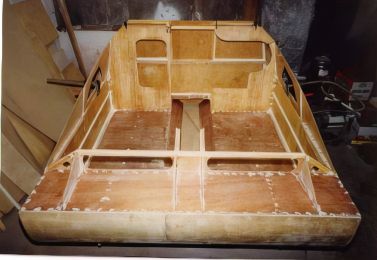

Construction is in the (ply)wood/glass/epoxy system. The boat has easy-to-build a-symmetrical hulls and daggerboard rudders. No lofting is required. The beams are made from standard Aluminum tubes for ease of construction.
Even amateurs new to boat building will have no difficulties building this boat. The drawings are CAD drawings.
The plans show two different hulls. The 2022 edition hulls have more volume. The nacelle now has also forward windows.
The construction description is clear to understand. The plans also include the construction of the carbon masts. With the parallel rig, the boat will be more stable.
Drawings and descriptions are included when ordering the DUO 800 plan. The masts can be built without using the vacuum technique!
Both are very fast coastal cruiser catamarans for the whole family. The parallel rig version will be faster because the sail area is bigger and the center of effort is lower.
It is the only eight-meter cat with a central nacelle on the market today. The nacelle sleeps four for a weekend outing or three for a holiday trip.
With a purpose-built trailer the boat can be set up in about a one hour
Construction is in the (ply)wood/glass/epoxy system. The boat has easy-to-build a-symmetrical hulls and daggerboard rudders. No lofting is required. The beams are made from standard Aluminum tubes for ease of construction.
Even amateurs new to boat building will have no difficulties building this boat. The drawings are CAD drawings.
The plans show two different hulls. The 2022 edition hulls have more volume. The nacelle now has also forward windows.
The construction description is clear to understand. The plans also include the construction of the carbon masts. With the parallel rig, the boat will be more stable.
Drawings and descriptions are included when ordering the DUO 800 plan. The masts can be built without using the vacuum technique!
DUO 800 fast coastal trailer sailer
DUO 800 study plans
consists of 14 pages.
pictures
Bulkhead construction
Short construction description
Table of contents
List of drawings
List of materials
US $ 15,-
consists of 14 pages.
pictures
Bulkhead construction
Short construction description
Table of contents
List of drawings
List of materials
US $ 15,-
DUO 800 PLANS SET consists of
38 drawings + 24 pages of building instruction.
Scale of the drawings is 1 : 10 or 1 : 1.
Format DXF files.
4 picture pages how to built difficult parts
Price plan US $ 290,
38 drawings + 24 pages of building instruction.
Scale of the drawings is 1 : 10 or 1 : 1.
Format DXF files.
4 picture pages how to built difficult parts
Price plan US $ 290,
